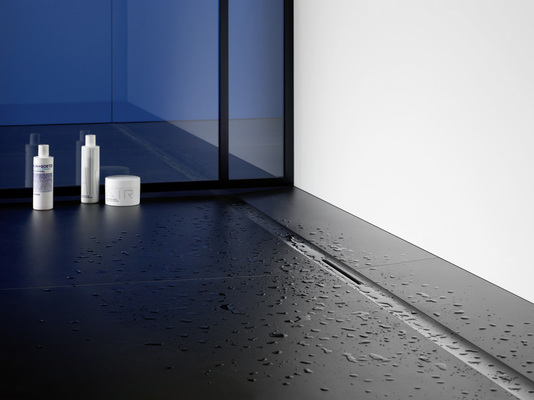

Wet room shower tray with pump system Plancofix Dallmer Connect Cera Floor (linear drain)

This level-access shower tray with integrated pump is perfect for installation in walk-in showers. The design with pump system is particularly suitable for old buildings and wherever the shower water cannot drain away on its own due to a lack of free fall. The incoming water is pumped to the nearest downpipe via a 1-inch pressure pipe.

The surface made of high-quality waterproofing membrane can be tiled immediately. The required gradient towards the drain is also already integrated.

Your advantages at a glance

• 100% watertight at the factory + ready to install
• Slope already integrated
• incl. drain with Plancofix Dallmer Connect pump system + stainless steel grating channel
• Directly from the manufacturer
• Barrier-free installation

Water-impermeable expanded polystyrene (EPS/XPS rigid foam) makes the shower board extremely resistant, even withstanding the weight of wheelchairs.

The important drainage slope is already integrated into the shower board. This shape enables a barrier-free shower with a high-quality finish and uncompromising design.

Drain and installation height

The flat shower element with Connect pump system benefits from a minimal overall installation depth. The Plancofix Connect pump is already pre-assembled. The sealing and decoupling membrane is also integrated ex works. A 7 cm edge projection of the waterproof sealing membrane is integrated all the way round. This serves as a seal to neighbouring components such as walls and floors.

Total installation depths

The total installation depth is made up of the thickness of the shower element and the height of the pump system. The shower element is 4 cm thick in the edge area. The pump protrudes 3.5 cm at the bottom. You can optionally order a substructure element up to 15 cm thick (free of charge). This is then glued to the substrate and the shower element. The recess for the pump is already integrated in the substrate element at the factory. All you have to do is cut out your pipework from the substrate element using a cutter knife or jigsaw.

The sealing membrane surface is also suitable for applications with above-average point loads (e.g. use of a shower chair or wheelchair). The stability remains unaffected!

Freedom when installing the shower and the drain position

The drain system included with the shower tray offers a full range of options for installation and positioning.

The position of the point drain within the shower is freely selectable. If you wish, you can position the point drain not only in the centre, but also at the edge. To do this, select the decentralised drain position option.

Plancofix Connect pump from Jung Pumpen / Dallmer

• Installation depth of the pump 7.5 cm
• Optimum sound decoupling thanks to insulating tray (< 30 dB)
• For showers up to 20 l/min
• 1 inch pressure pipe
• Variable drain cover
• Electrical supply line 5 metres long

The Connect pump system only requires an installation depth of 7.5 cm. The reduction in installation depth is due to the use of a slightly smaller but nevertheless powerful synchronous motor with non-clogging hydraulics.

The motor is characterised by its extremely quiet operation. The noise level is below 27 d(B)A and thus fulfils the requirements of DIN 4109.

Plancofix Connect is not a lifting unit in accordance with DIN EN 12050-2, but has been specially designed for draining showers (max. 20 l/min). The water can be fed from the shower either directly from above via the floor drain or from the side via a connection piece (1 inch).

100% tightness around the edges

To ensure absolute impermeability to the surrounding floor, the shower tray has an integrated sealing fleece with a "fleece overhang". We leave a 7 cm overhang around the edge of the shower tray for the applied sealing fleece. The overhang is simply glued to the wall and the neighbouring floor. This achieves 100 per cent impermeability around the edges.

SaxoPET Eco

You have a choice of three different backing materials. All are highly pressure-resistant. SaxoPET Eco is the world's first sustainable substrate material for showers that is made from 100% recycled PET and is also highly pressure-resistant (compressive strength 110 tonnes/m²).

Fully integrated electric or hot water underfloor heating (optional)

On request, a fully integrated electric underfloor heating system can be installed at the factory. Only the connection cables then protrude from the shower tray, which only need to be connected to the existing power supply. If you would like a hot water heating system for our shower trays, please send us your existing underfloor heating pipe. We will then integrate this completely into the shower tray. The connections for this look out at the points you specify (these are configured at the top). The heating integrated into the shower element does not increase the installation height/thickness of the shower element.

You will receive a thermostat for convenient regulation of the floor temperature with the electric floor heating.

Unfortunately, it is not possible to return these shower elements, as they are customised to your order.
